# Section 3 Notes

In this section, we will use C to write some code, it is much more programmer friendly than assembly. But before we dive into C programming, we still need to write some assembly code in order to load our C program.

# 3.1 Setting Up a Stack

A prerequisite for using C is a stack. To setup a stack, add the chunk of code below into loader.s:

...
KERNEL_STACK_SIZE equ 4096                  ; size of stack in bytes

section .bss
align 4                                     ; align at 4 bytes
kernel_stack:                               ; label points to beginning of memory
resb KERNEL_STACK_SIZE                  ; reserve stack for the kernel
...

Then set up the stack pointer by adding esp to the end of the kernel_stack memory:

...
loader:
	; point esp to the start of the stack (end of memory area)
	mov esp, kernel_stack + KERNEL_STACK_SIZE
...

# 3.2 Calling C Code From Assembly

Now lets write a very simple C code, much simpler than hello world:

/* In your C program file */
int sum_of_three(int arg1, int arg2, int arg3) {
    return arg1 + arg2 + arg3;
}

And save the code above into a file called kmain.c.

Back to loader.s, inside loader label, after the line of code mov esp, kernel_stack + KERNEL_STACK_SIZE, add the code below:

...
	loader:
        mov esp, kernel_stack + KERNEL_STACK_SIZE
        ; the function sum_of_three is defined in kmain.c
        extern sum_of_three
        push dword 3            ; arg3
        push dword 2            ; arg2
        push dword 1            ; arg1
        ; call the function, the result will be in eax
        call sum_of_three
...

The code above will call the function sum_of_three, where it has been defined in kmain.c, then send 3 numbers to the function. Here the 3 numbers are 1, 2, 3. Since the function is addition, we should expect to see the result 6 in the EAX register. If you don't know why its 6, take out your calculator and compute 1+2+3 and you will get the same result as ours. 🤣

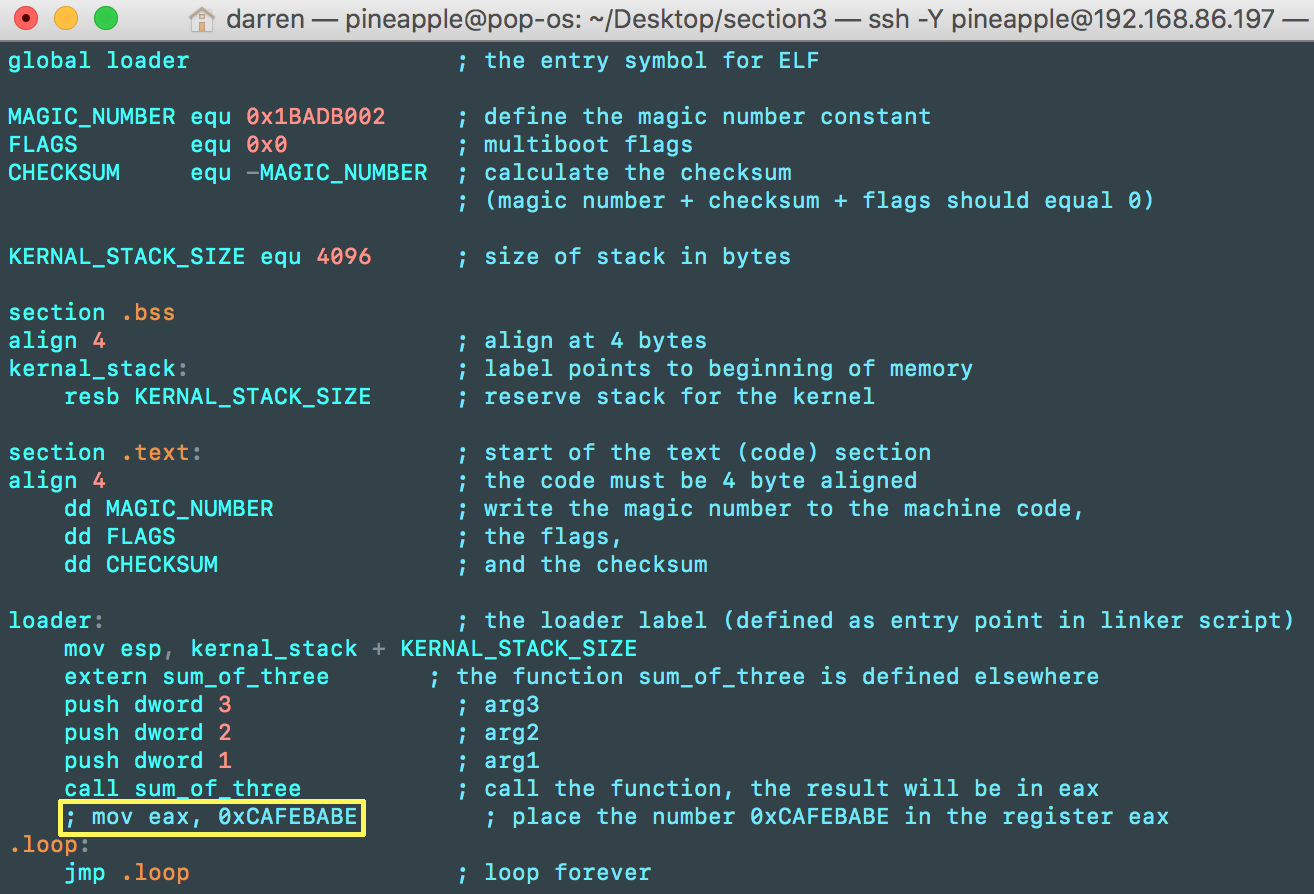

If you got lost, here is the code inside loader.s:

global loader                   ; the entry symbol for ELF

MAGIC_NUMBER equ 0x1BADB002     ; define the magic number constant
FLAGS        equ 0x0            ; multiboot flags
CHECKSUM     equ -MAGIC_NUMBER  ; calculate the checksum
                                ; (magic number + checksum + flags should equal 0)

KERNAL_STACK_SIZE equ 4096      ; size of stack in bytes

section .bss
align 4                         ; align at 4 bytes
kernal_stack:                   ; label points to beginning of memory
    resb KERNAL_STACK_SIZE      ; reserve stack for the kernel

section .text:                  ; start of the text (code) section
align 4                         ; the code must be 4 byte aligned
    dd MAGIC_NUMBER             ; write the magic number to the machine code,
    dd FLAGS                    ; the flags,
    dd CHECKSUM                 ; and the checksum

loader:                         ; the loader label (defined as entry point in linker script)
    mov esp, kernal_stack + KERNAL_STACK_SIZE
    extern sum_of_three       ; the function sum_of_three is defined elsewhere
    push dword 3                ; arg3
    push dword 2                ; arg2
    push dword 1                ; arg1
    call sum_of_three           ; call the function, the result will be in eax
    ; mov eax, 0xCAFEBABE         ; place the number 0xCAFEBABE in the register eax
.loop:
    jmp .loop                   ; loop forever

# 3.3 Compiling the code

Recall what we did before, we run commands to compile the loader.s, then combine link.ld and loader.o into a file called kernel.elf. And we ran the crazy long command to build an ISO image, then finally load it into Bochs. Since now we have the C code, we will need gcc to compile and combine our C code with assembly code, there will be more commands you need to type into your little terminal. That's a lot of typing work. 😭

That's is why we need a handy tool called make. In your root directory, create a file called Makefile. Then paste the script below:

OBJECTS = loader.o kmain.o
CC = gcc
CFLAGS = -m32 -nostdlib -nostdinc -fno-builtin -fno-stack-protector \
            -nostartfiles -nodefaultlibs -Wall -Wextra -Werror -c
LDFLAGS = -T link.ld -melf_i386
AS = nasm
ASFLAGS = -f elf

all: kernel.elf

kernel.elf: $(OBJECTS)
	ld $(LDFLAGS) $(OBJECTS) -o kernel.elf

os.iso: kernel.elf
	cp kernel.elf iso/boot/kernel.elf
	genisoimage -R                              \
				-b boot/grub/stage2_eltorito    \
                -no-emul-boot                   \
                -boot-load-size 4               \
                -A os                           \
                -input-charset utf8             \
                -quiet                          \
                -boot-info-table                \
                -o os.iso                       \
                iso

run: os.iso
	bochs -f bochsrc.txt -q

%.o: %.c
	$(CC) $(CFLAGS)  $< -o $@

%.o: %.s
	$(AS) $(ASFLAGS) $< -o $@

clean:
	rm -rf *.o kernel.elf os.iso

Save the Makefile, make sure the Makefile has been placed in the right place(root directory). You can type make clean in your terminal to see whether the make has been installed or the Makefile has been written correctly.

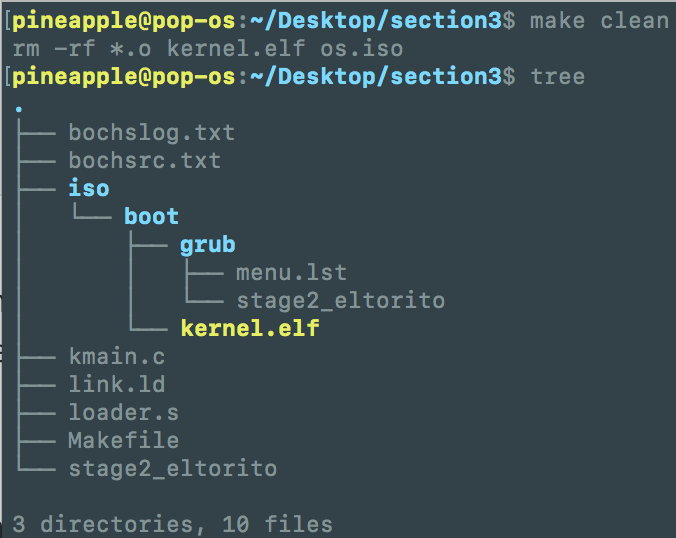

After run make clean successfully, since make clean will remove all the .o files, kernel.elf and os.iso, now the working directory(root directory) should looks like below:

# 3.4 Compile and Run

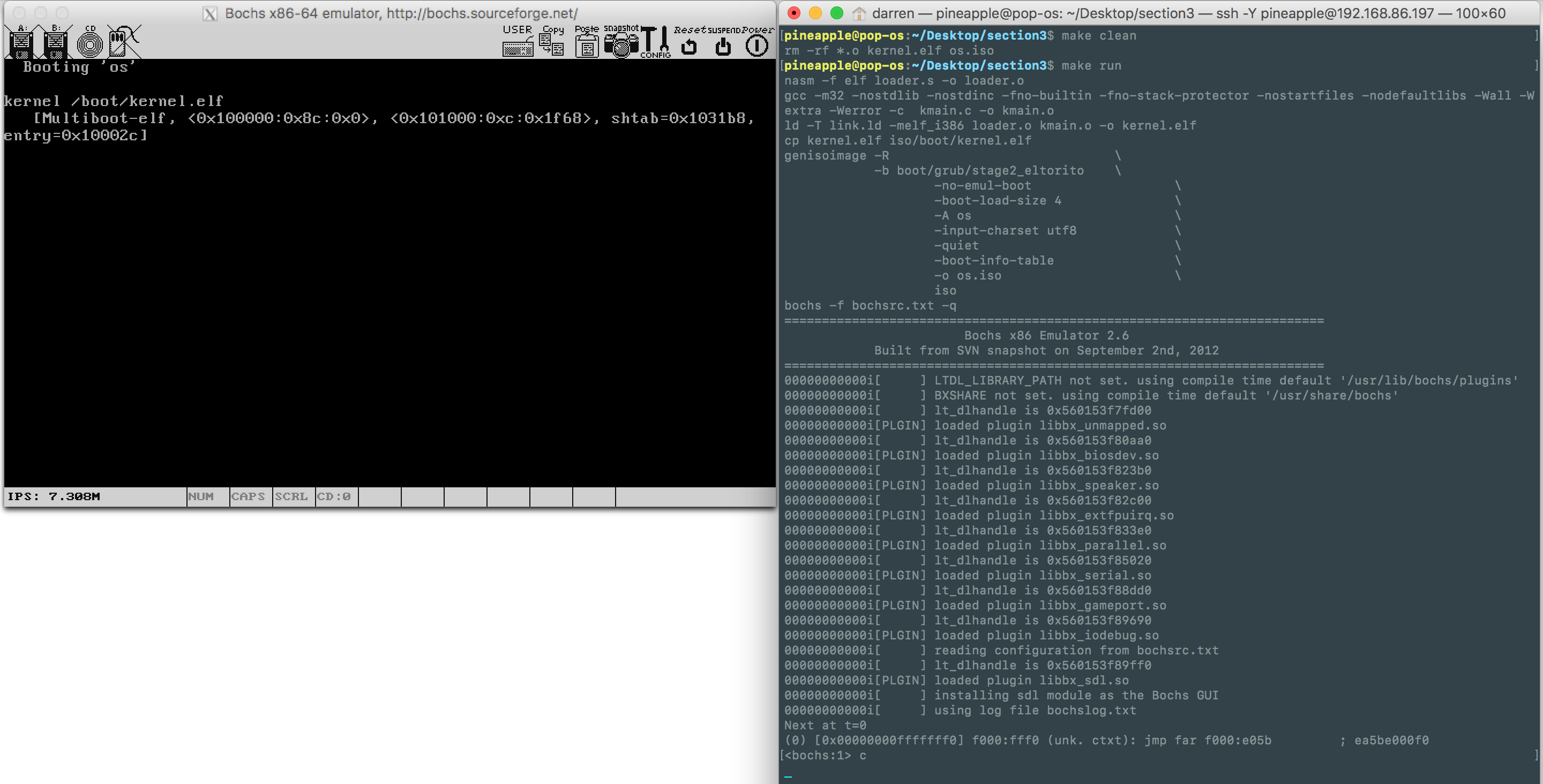

Finally, run the command make run, the make will compile the kernel and boot it up in Bochs.

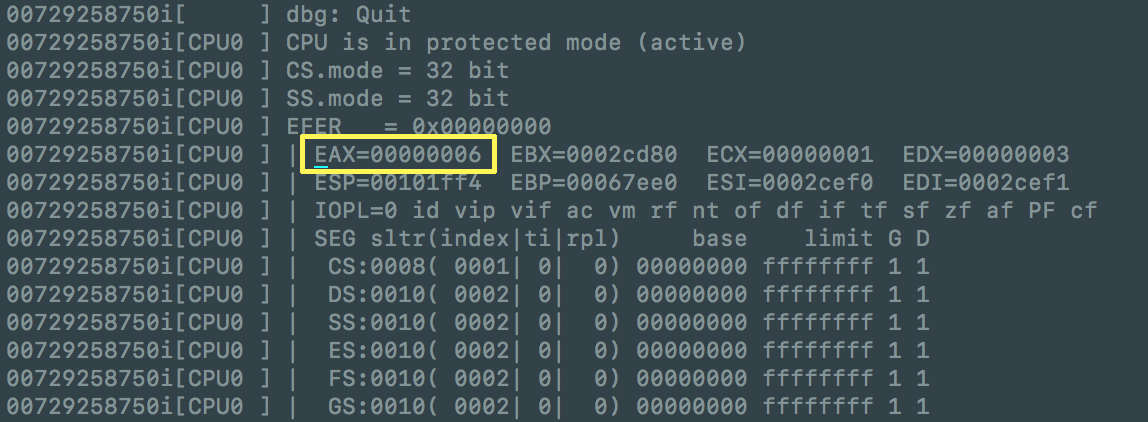

After quit Bochs, check the bochslog.txt, the expected result should be right here:

That's all for the section 3! 🎉
